| Parameter | Description / Range |
|---|---|
| Material | High-strength steel wire |
| Surface Finish | Plain / Zinc-plated |
| Diameter (Wire) | 6 mm – 20 mm (customizable) |
| Loop Diameter | 40 mm – 150 mm |
| Flare Type | Single flared |
| Load Capacity | 0.5 T – 12 T (based on size) |
| Thread Type | Standard coil |
| Concrete Embedment Depth | Recommended: 100 mm – 300 mm |
| Application | Lifting, anchoring, and handling precast concrete elements |
| Standard Compliance | CE / ISO / Customer-specific standards |

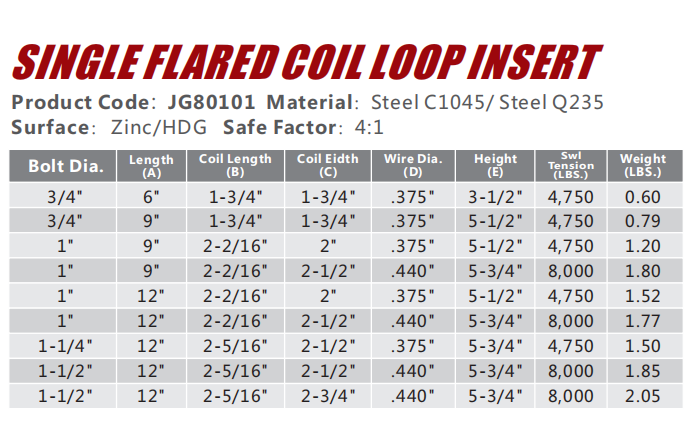

The Single Flared Coil Loop Insert is designed for lifting and anchoring precast concrete elements. It features a flared coil end for easy engagement with lifting hardware and improved load transfer within the concrete. Manufactured from high-strength steel wire, it ensures reliable performance under tension loads. Available in various sizes and load capacities to meet different construction requirements.
Material:Precision Steel ,Carbon Steel,Stainless Steel tube 304/316;
Surface:Plain/Zin/HDG;
Thread Type：RD thread/M thread
Standard: EU Machinery Directive 2006/42/EC and VDl/BV-BS 6205
